Multifunction Power & harmonics Analyzer
Model: MODEL- KM 2100 / KM 2200
Make: Kusam-Meco
Special Features:
<br>
• Volts / Amps. / Hertz, Dips & Swell, Power / Energy,<br>
Unbalance, Monitor, Scope, Harmonic, Logger &<br>
Interruption functions.<strong> (KM 2200)</strong><br>
• Inter Harmonics, Transient Voltage, Inrush Current, Flicker<br>
function not available in <strong>KM 2200.</strong><br>
• Frequency upto 400Hz <strong>(KM 2100)</strong>; 50 / 60Hz <strong>(KM 2200)</strong><br>
• Single-phase 2W / Single-phase 3W / 3-phase 3W / 3-phase 4W.<br>
• Flash memory 128MB<br>
• TF Card 8G Memory Card for long-term measuring data storage. <br>
• Support USB port to connect to PC and analyze the data /<br>
screen shots copied by U-disk.<br>
• Support LAN port to make the remote control available,<br>
transfer the measuring data. <br>
<br>
<br>
<br>
<br>
<br>
<br>
• <strong>IP :</strong> IP51, according IEC60529<br>
• <strong>Safety :</strong> CAT III 1000V / CAT IV 600V.<br>
• <strong>Standards :</strong> IEC61000-4-30 (2008) S class, EN50160 (2007). <br>
• <strong>Electrical Safety comply with :</strong> IEC61010-1 <br>
• <strong>Dimension :</strong> 262 x 173 x 66mm<br>
• <strong>Weight :</strong> Approx. 1.6kg.<br>

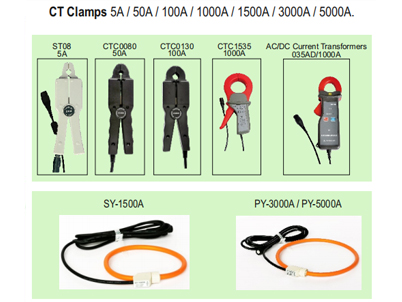

<strong class="header-red-small"> Accessories :</strong><br>
