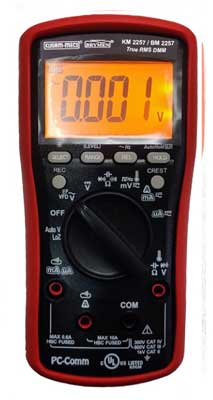

3-5/6 DIGIT 6000 Counts Digital Multimeter

Special Features:
<br>
• AutoV (LoZ); <br>
• BeepJackT on mAmA / A terminals <br>
• BeepLitTM Continuity; <br>
• Auto-ranging MAX / MIN / AVG Record; <br>
• Backlighted LCD; <br>
• Auto-ranging Relative Zero mode; <br>
• Display Hold; <br>
• EF-Detection (NCV); <br>
• VFD;


<strong class="header-red-small"> General Specifications : </strong><br>
• <strong>Sensing : </strong> True RMS sensing <br>
• <strong>Display :</strong> 3-5/6 digits 6000 counts <br>
• <strong>Update Rate :</strong> 3-5/6 digits: Max 5 per second nominal<br>
        60 Segment Bar-graph: 40 per second max <br>

• <strong>Operating Temperature :</strong> -10oC to 50oC continuous operating <br>
(except on A function, see Electrical Specifications below for more details) . <br>
• <strong>Relative Humidity : </strong>MMaximum relative humidity 80% for temperature up to
31°C decreasing linearly to 50% relative humidity at 50 °C<br>
• <strong>Storage Temperature:</strong> -20 °C to 60 °C, &lt;80% R.H. With battery removed from meter.<br>
• <strong>Altitude :</strong> Operating below 2000m <br>
• <strong> Ingress Protection :</strong> Ip40 <br>
• <strong>Storage Temperature :</strong> -20 °C ~ 60 °C, &lt; 80% R.H. (with battery removed) <br>
• <strong>Temperature Coefficient :</strong> Nominal 0.15 x (specified accuracy) / °C @
(-10 °C ~ 18 °C or 28 °C ~ 50 °C), or otherwise specified <br>


• Low Battery : Below approx. 2.5V <br>
• <strong> Power Supply :</strong> 1.5V AAA Size battery X 2 <br>
• <strong> Power Consumption (typical) :</strong> 4.0mA <br>
• <strong> APO Consumption (typical) :</strong> 20A <br>
• <strong> APO Timing :</strong> Idle for approx. 30 minutes <br>
• <strong> Dimension :</strong> Aporox. 161(L) x 80(W) x 50(H)mm (With Holster) <br>
• <strong> Weight :</strong> Approx. 334 gm (With Holster) <br>
• <strong> Accessories :</strong> Test lead pair; Batteries installed; User's manual; <br>
BKP60 banana plug type-K thermocouple <br>
• <strong> Optional purchase accessories :</strong> BKB32 banana plug to type-K socket plug adaptor; <br>
BMH-01 magnetic hanger; USB interface kit BRUA-20X <br> <br>
