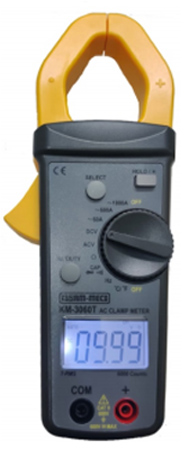

400A AC Digital Clampmeter

Special Features:
<br>
• Measurement CAT II 600V AC/DC <br>
• Altitude upto 2000 meters <br>
• Relatively humidity 80% max.<br>
• Pollution Degree 2 <br>
• Indoor use only<br>

<strong class="header-red-small">General Specifications </strong> <br>
• <strong> Display : </strong>3-5/6 digits liquid crystal display (LCD)<br>
Max. Rading 5999. Automatic indication of<br>
functions and symbols.<br>
• Jaw Size : Cables Φ36mm<br>
• Maximum Voltage between any terminal &amp;<br>
Earth ground 750 Vrms.<br>
• Operating Temperature : 0~40°C<br>
• Operating Principle : Dual slope integration<br>
• Over Range Indication : LCD will show a “OL”<br>
in the highest position accompanied. (except<br>
for ranges of 1000A AC, and<br>
1000VDC or 750VAC)<br>
• Low Battery Indication : The is displayed when the battery voltage drops below the
operating voltage.<br>
í Sampling rate : 2.5times/sec (Digital Display).<br>
í Battery Life : 60hrs approx.(Alkaline)<br>
í Polarity : Automatic polarity “-” display for negative input<br>
í Auto Power Off : The meter is powered off 15 minutes<br>
later after the last operating was made. To bringe back<br>
the display please turn rotary switch to more positions<br>
or push any button<br>
í Operating Temperature &amp; Humidity :<br>
0°C to 40°C (R.H.&lt;80%)<br>
í Storage Temperature &amp; Humidity :<br>
-10°C to 60°C (R.H.&lt;80%)<br>
í Power Supply : 1.5V AA x 2 Alkaline Battery.<br>
í Dimension : 228(L) x 75(W) x 36(H)mm<br>
í Weight : Approx. 465 gms. (including battery).<br>
