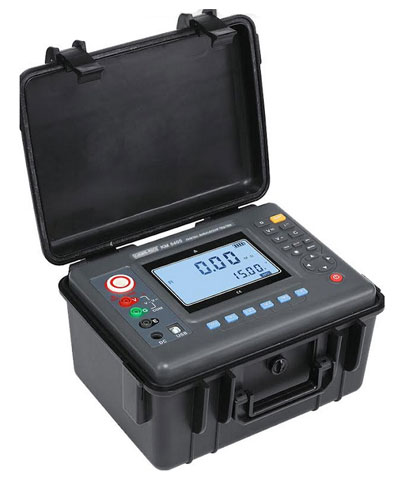

Digital Insulation Resistance Tester

Special Features:
<br>
<b> 5 KV IR Tester.</b> <br>
Insulation Resistance Range : 0.01MΩ～10TΩ,<br>
Short Circuit Current : ≥6mA, Step Voltage, Capacitance, Leakage Current Function. PI, DAR, Ramp Function. <br>Model KM 5405
<br> <br>
<b>10 KV IR Tester.</b> <br>
Insulation Resistance Range : 0.01MΩ～35TΩ, <br>
Short Circuit Current : ≥6mA, Step Voltage, Capacitance, Leakage Current Function. PI, DAR, Ramp Function. <br>
Model KM 5410
<br> <br>
<b>15 KV IR Tester.</b> <br>
Insulation Resistance Range : 0.01MΩ～50TΩ, <br>
Short Circuit Current : ≥6mA, Step Voltage, Capacitance, Leakage Current Function. PI, DAR, Ramp Function. <br>
Model KM 5415
<br> <br>

• Rated applied voltage :<br> 100; 250; 500; 1000; 2500; 5KV (KM 5405)<br>
250V; 500V; 1000V; 2500V; 5000V; 10KV (KM 5410)<br>
500V; 1000V; 2500V; 5000V; 10KV; 15KV (KM 5415)<br> <br>
• Resistance limit range :<br> 0.01MΩ～10TΩ (KM 5405); <br>
0.01MΩ～35TΩ (KM 5410) ;<br>
0.01MΩ～50TΩ (KM 5415)<br> <br>
• Resolution : 0.01MΩ <br>
• Accuracy : ± 3% rdg ±5 dgt <br>
• Output short-circuit current : ≥6mA <br> <br>

<strong class="header-red-small"> Technical Specifications : </strong> <br>
• Function Insulation resistance test, voltage test, current test, capacitance test <br>
• Basic condition 23 ℃ ± 5 ℃， below 75 %rh <br>
• Rated voltage(V) <br>
100V; 250V; 500V; 1000V; 2500V; 5000V <br>
250V; 500V; 1000V; 2500V; 5000V; 10KV <br>
500V; 1000V; 2500V; 5000V; 10KV; 15KV <br> Accuracy rated voltage ×（1 ± 10%） <br> <br>
• Insulation resistance range(GΩ) <br>
0.01 MΩ ～ 10 TΩ 0.01 MΩ ～ 35 TΩ 0.01 MΩ ～ 50 TΩ <br>
• Accuracy: ±3 %rdg ± 5dgt Resolution: 0.01 MΩ <br>
• DC voltage range 0.1～1000 V <br>
• AC voltage range 0.1～750 V <br>
• DC current measurement 0.01 nA～6 mA <br>
• Capacitance test 10 nF～50 uF <br>
• Power 12V rechargeable battery <br>
• Backlight Controllable gray screen backlight, suitable for use in dim places <br>
• Display mode 4-bit large LCD display, gray screen backlight <br>
• Instrument size 240mm (L)*188mm (W)*85mm (H) <br>
• USB interface With USB interface, software monitoring, storage data can upload computer,
save and print <br>
• Communication line USB communication line 1pc <br>
• Test line High voltage rod red line 3 meters, high voltage test line black line 1.5 meters, green line 1.5 meters <br>
• Data Storage 500 groups, "FULL" symbol indicates that storage is full <br>
• Data Review Data review function: "READ" symbol display <br>
• Overflow Display Exceed measurement range overflow function: “OL ” symbol display <br>
• Alarm function When the measured value exceeds the alarm set value, an alarm
prompt is issued. <br>
• Instrument weight : 2720g(including battery) <br>
• Power Consumption : <br> Standby: 30mA Max(backlight off) <br>
• Turn on backlight: 42mA Max <br> Measure：200mA Max(backlight off) <br>
• Battery voltage : When the battery voltage is low, low battery symbol will display <br>
• Automatic shutdown : automatic shutdown after 15 minutes boot <br>
• Insulation Resistance : ≥50MΩ(between Measuring line and housing) <br>
• Pressure Resistance : AC3kV/50Hz 1min <br>
• Working Temperature and Humidity : －10 ℃ ～ +50 ℃ ＜ 85 % RH <br>
• Storage Temperature and Humidity : － 15 ℃ ～ + 55℃ ＜ 90%RH <br>
• Suitable for Safety Regulations : "IEC61010-1, IEC1010-2-31, IEC61557-1,5, IEC60529(IP54)
pollution grade 2, CAT III 300V <br>
• Accessories : High voltage bar, High voltage test line,USB communication lineUSB,
charger, Software CD, Instruction Manuals, Instruments box <br>
