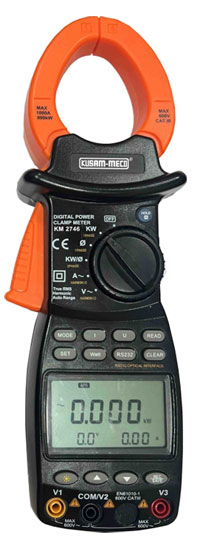

1 Phase & 3 Phase Harmonics TRMS Power Clampmeter With PC Interface

Special Features:
<br>
• Fully automatic range selection <br>
• “OL” Over-range display <br>
• “HOLD” Function is shown on LCD <br>
• Frequency Detection : Automatic (when Harmonic is
serious, it is better to use manual settings for testing
frequency so as to assure the reading stability) <br>
• Data Storage : 100 groups fo test parameters <br>
• MAX/MIN Record mode <br>
• PC-comm computer interface capabilities RS-232
<br> <br>
<strong class="header-red-small">General Specifications </strong> <br>
<br> • <b>Display :</b> 4 digit 6000 counts LCD Backlight display for displaying <br>
measurement operation function, test result &amp; unit sign. <br>
•<b> Jaw Opening :</b> F 55mm <br>
• <b>Max. common-mode voltage :</b> 600V AC RMS <br>
• <b>Storage Temperature :</b> -20°C ~ 70°C <br>
• <b>Operating Temperature :</b> 0°C ~ 40°C <br>
• <b>Temperature coefficient :</b> 0.05 ×(specified accuracy) per °C <br>
• <b>Operating Altitude :</b> 2000m CAT III 600V; 3000m CAT II 600V <br>
