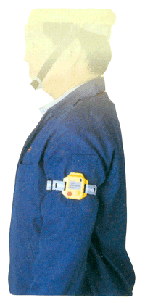

11.4KV Personal Safety High Voltage Detector

Model: Model 286 SVD

Make: Kusam-Meco

Special Features:
<br>
• Compact, easy to wear and convenient in use.<br>
• Usable both indoor and outdoor.<br>
• Water-proof design.<br>
• Equipped with self-testing functions.<br>
• Sound and flash light warning of different frequencies varied positively with sensed voltages.<br>
• Able to sense all kinds of AC High Voltage System.<br>
• Low power consumption.<br>
• CE Certified. <br>



<strong class="header-red-small"> General Specifications </strong><br>
•<strong> Distance of starting warning :</strong> 80cm for 11.4KV (6.6KV voltage to earth)<br>
• <strong>Min. Sensing Voltage : </strong>1.1KV <br>
• <strong>Applicable Frequency :</strong> 50/60Hz<br>
• <strong>Volume :</strong> 70dB or higher at 1 meter distance<br>
• <strong>Operating Temperature &amp; Humidity :</strong> 5°C ~ 45°C / 80% R.H.<br>
• <strong>Battery life :</strong> 50 hours for continuous use.<br>
• <strong>Battery :</strong> CR2032<br>
• <strong>Outside dimensions : </strong>59(L) x 56(W) x 18(H) mm<br>
• <strong>Weight :</strong> Approx. 35g.(including Battery)
